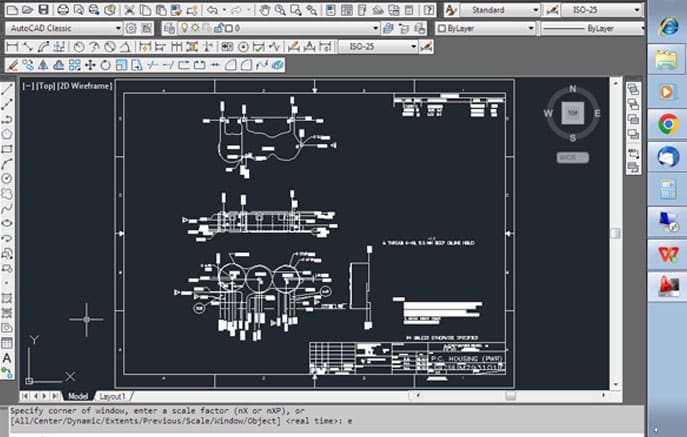

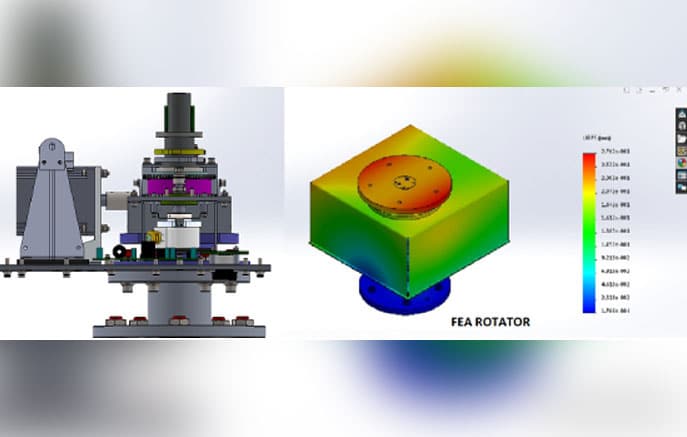

Design
SMT Line - Proto Development

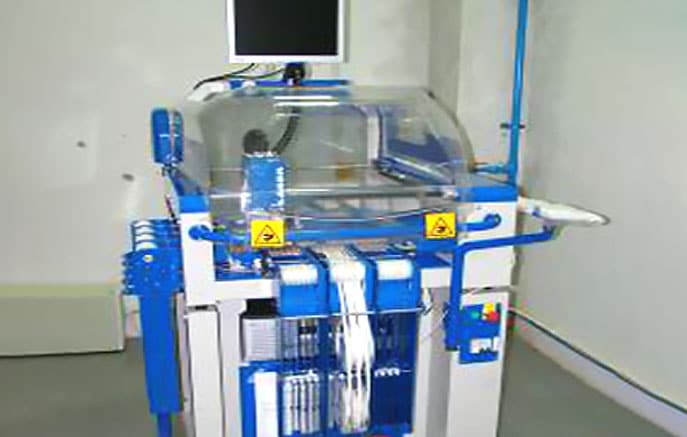

Pick and Place Machine
- PCB size up to 300 mm x 300 mm
- 4000 components per hour
- Chip (starts from 0402 size), IC (up to 35mm side) etc.
- Handles MELF, MINI-MELF, SOT Diodes & Transistors, Trimmer, Inductor & Electrolytic Capacitors etc.)
Re-flow Oven
- Re-flow Conveyor Speed 75 to 500

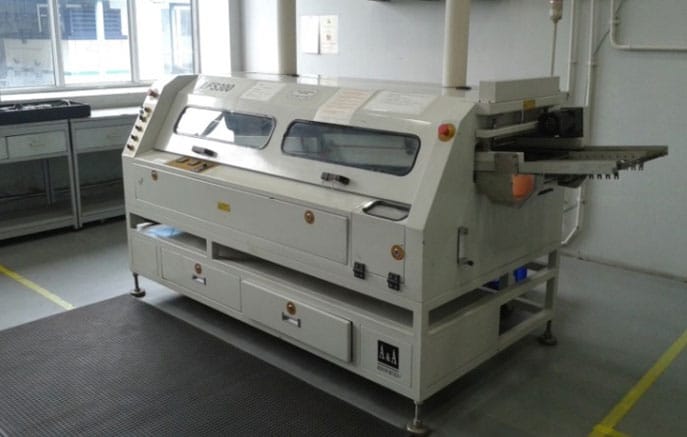

Wave Soldering (PCBA)
- PCB Size 300 mm (wide) with dual wave operation

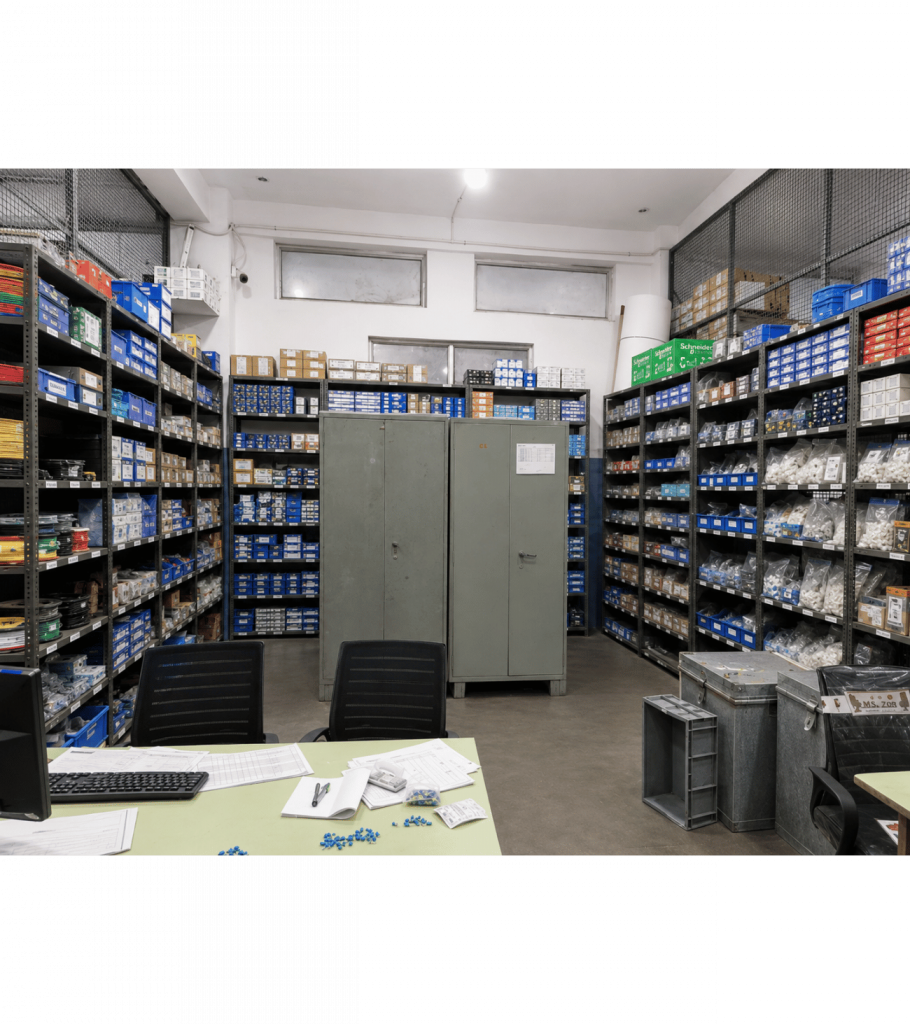

Store Area

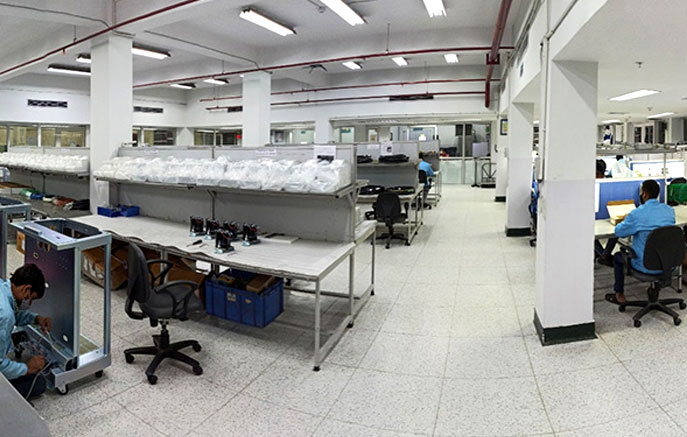

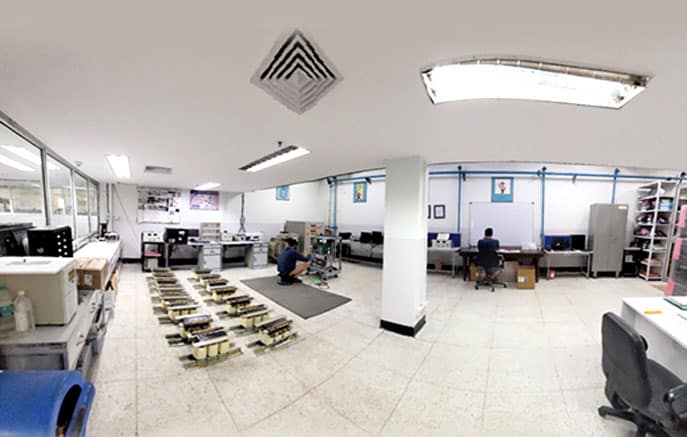

Electronic Assembly Area

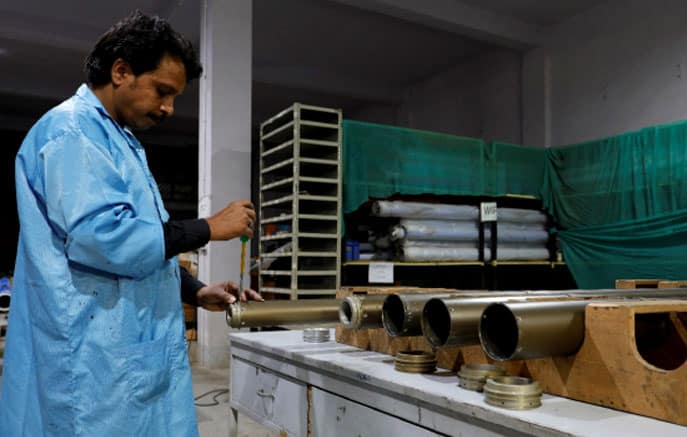

Mechanical Assembly Area

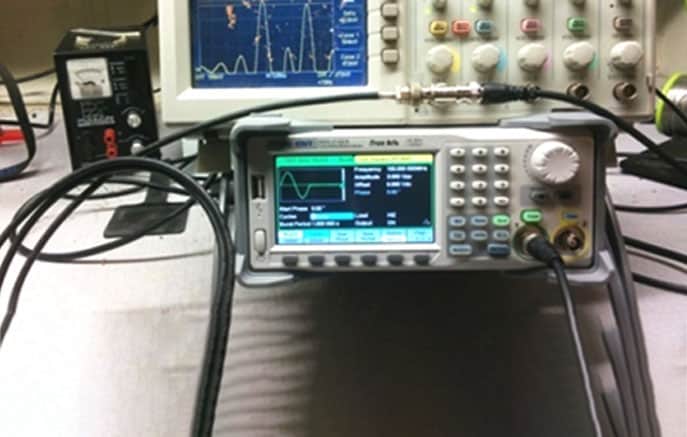

RF Cable Test Lab
Environmental & ESS Test Lab
Thermal Shock Chamber
- Temperature Range -40°C to +150°C
- Temperature Control Accuracy ± 1°C

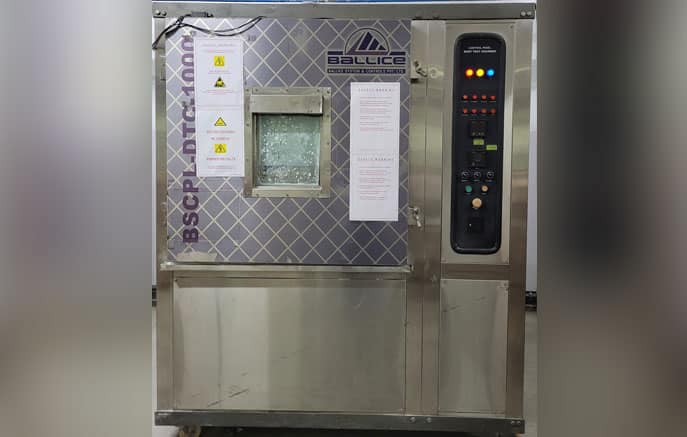

Dust Chamber
- Test on Ambient temperature to 40°C
Rain Chamber
- Temp Range only ambient Temp – 35°C
- Pressure available – 20PSI
Environmental Chamber
- Temperature Range -40°C to +120°C
- Humidity Range: 20%RH to 97% RH
- Temperature Control Accuracy ± 1°C
- Ramp Rate 1°C per min.

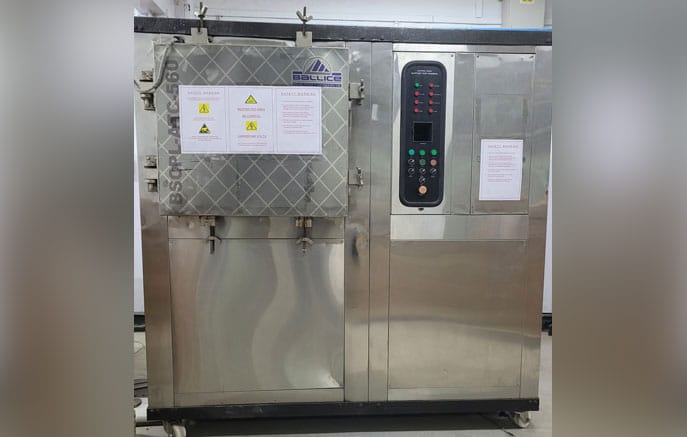

Altitude Chamber
- Temperature Range -40°C to +150°C
- Temperature Control Accuracy ± 1°C
- Ramp Rate 1°C per min
- Altitude Range 66000 Feet i.e. 1.60 in Hg

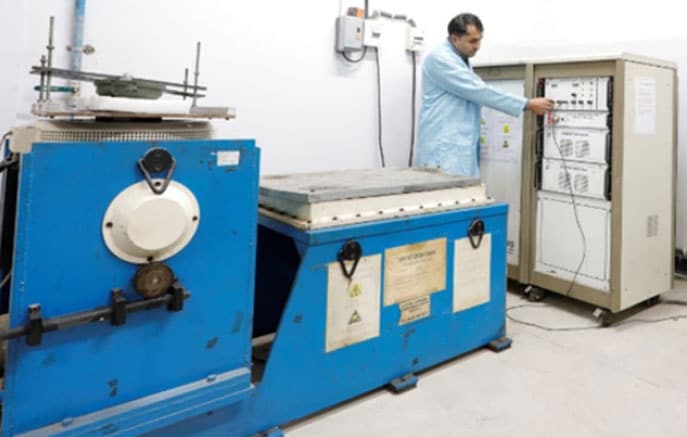

Vibration Machine
- Force rating – 600 kgf – sine peak
- – 524 kgf – Random
- Freq. range – 5 Hz to 5000Hz
- Max. Load capacity – 80kgs with ILS
- Vibration axis- X, Y, Z
- g’ – 9.80665m/sec2
Hot & Cold Chamber
- Temperature Range -40°C to +110°C
- Temperature Control Accuracy ± 5°C
- Ramp Rate-10°C to -40°C (5°C/Min)
- Ramp Rate-Ambient to -10°C (10°C/Min)
Bump Machine
- Peak Acceleration = 25 G
- Pulse Duration (D) = 6 m Sec
- Numbers of BUMPS =4000±10
Salt Spray Chamber
- 7 Salt combination test on Ambient temp

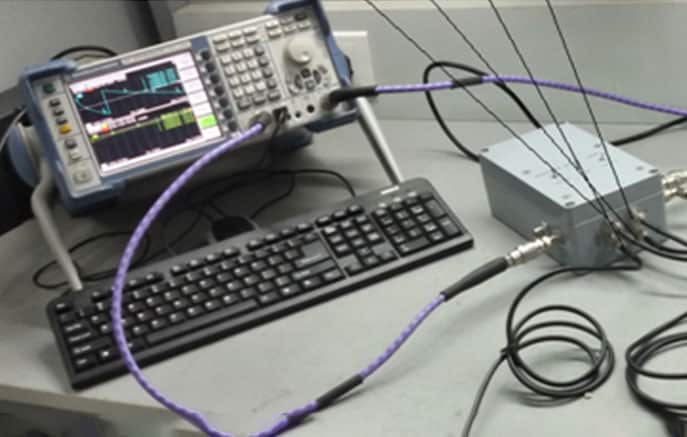

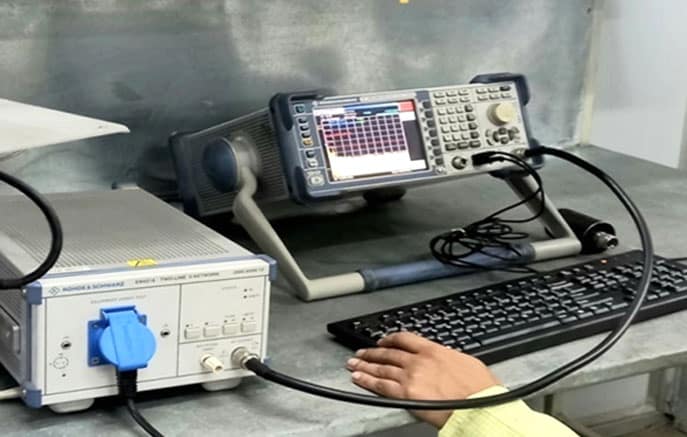

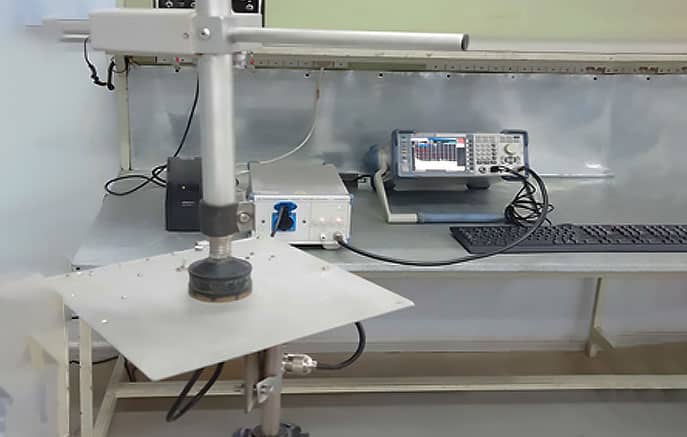

Pre-Compliance EMI-EMC Lab
Maintenance & Repair Lab
Covered Area: 1000 sq. feet including store of ESD
